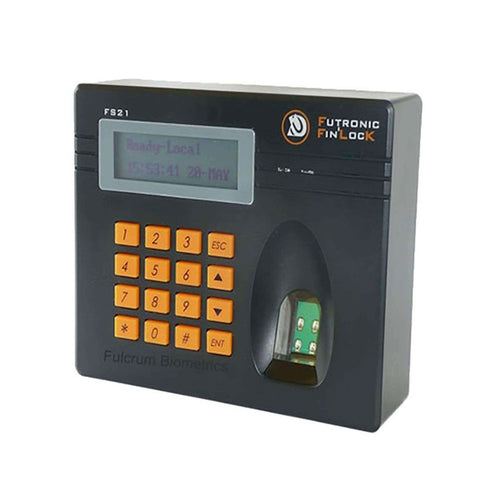

With high resolution optical system & latest biometric technology, Futronic Fin'Lock FS21 Fingerprint Access Control System provides enterprises a secured but convenient access and attendance control solution. It supports MiFare card(a contactless smart card technology developed by Philips) so that any combination of fingerprint, MiFare card and PIN can be used for access and attendance control. If necessary, fingerprint can also be stored in MiFare card to eliminate any possible privacy issue.

The FS21 uses a Digital Signal Processor for fingerprint recognition. It can do full-match for 500 fingerprints in one second. Full-match means the device matches the input fingerprint to all fingerprints stored in the database before giving result. That is, the matching does not stop even after getting preset matching score but will continue to match all fingerprints and return the fingerprint that has the highest score. This is a major advantage of Fin'Lock products comparing with most other similar products available in the market which stop the matching when preset score is reached. It is because Full-Match is the most accurate way of fingerprint recognition and can reduce the False Acceptance Ratio (FAR) to almost zero. It is a perfect solution for application that needs to do 1-to-many matching with a large fingerprint database.

Futronic FS21M can operate in both Local and Network mode. With standard Ethernet interface, FS21Ms can be connected as a cluster via LAN/Internet under the control of a single Fingerprint Authentication Server(FAS) which is Futronic proprietary software running on Windows 2000/XP and Vista.

In network mode, fingerprints can be stored and recognized in the FAS which can handle unlimited number of fingerprints. In local mode, each FS21M can store up to 3000 fingerprints itself and can be used as a standalone access and attendance control device.

Futronic FS21 Key Features

FS21M supports Futronic proprietary Live Finger Detection(LFD). If this function is activated, only live fingers can be used to access and FS21M will not capture the image from fake fingers. So fake fingers made from silicone and rubber can't be used to access.
With MiFare card reader and writer. That is, all FS21M can be used to issue MiFare card for users.
Support various access control methods to meet different application needs, some examples are:
- Fingerprint only(1-to-N matching)
- ID+ Fingerprint(1-to-1 matching)
- MiFare card+Fingerprint(1-to-1 matching)
- MiFare card+Fingerprint stored on card(1-to-1 matching)
- MiFare card+PIN
- MiFare card only
- PIN only
Each user can register up to 3 fingerprints
User/Finger administration such as add, delete, edit, etc, can be done in FS21M and FAS/PC.
User/Finger database can be synchronized between FS21M and FAS/PC via LAN/Internet
All communication between FS21M and FAS is encrypted by Blowfish algorithm and the key exchange between them is done by Diffie-Hellman algorithm.
Can operate in local mode or network mode
Support Wiegand interface with 5 selectable output formats.
Support Futronic's Remote Relay Unit FS30.
There are black and silver colour enclosure for customer to select.

Tech Specs

Product Name	FS21M Lin"Lock Access Control Unit
Manufacturer	Futronic Technology Company Limited
Fingerprint Image Resolution	320x480 pixel,500DPI
Scanning window size	16mm x 24mm
Recognition Accuracy	FAR-10-6, FRR-10-2
Display	122 x 32 dot matrix LCD with backlight
User Input & Prompt	16 keys keypad, Buzzer, red and green LED
MiFare sensing range	30 mm
Interface to PC/Server	Ethernet
Door Control	1 Door Strike, 1 Door Switch and 12VDC/1.5A
Operating temperature	-10 to +55 Degrees
Dimensions (W x H x D)	140 x 110 x 41.5mm
Enclosure	3mm Thick ABS

FS21 Operation in Local mode

Each FS21M can store up to 3000 fingerprints
Fingerprint recognition is done on FS21M(input finger is matched to database stored in FS21M). If using the MiFare card with/without fingerprint, the user authentication is also done locally.
Access log is stored locally. Each FS21M can store up to 1 million access log records
Access Log in FS21M can be sent to FAS via LAN/Internet and then exported as Excel or text format

FS21 Operation in Network mode

Unlimited number of fingerprints can be stored in Finger Authentication server(FAS)
Fingerprint recognition is done on FAS(input finger is matched to database stored in FAS)
If using the MiFare card with/without fingerprint, the user authentication is also done in FAS.
Access log is stored in FAS which can store unlimited number of access log records.
Access Log in FAS can be exported as Excel or text format
A maximum of 99 Fin'locks can be connected to FAS to form a cluster for large-scale access control application
If LAN/Internet connection is accidentally broken, all FS21Ms will switch to operate in local mode automatically
